Workpiece Pallet For High-Speed Roller Conveyors
Specially designed for high-speed roller conveyors, this work pallet combines a Polyamide (modified reinforced) base with a full-bottom overlay of 8 million molecular weight UPE (Ultra-High Molecular Weight Polyethylene), offering high strength, low friction, and excellent wear resistance for high-speed continuous conveying systems.
Key Features:
- Ultra-Wear-Resistant Bottom:
The UPE layer significantly reduces friction between the pallet and rollers, extending service life. - High-Strength Construction:
Uses high-strength wear-resistant nylon positioning sleeves and frames, reinforced with steel pins to prevent deformation or loosening under high-speed vibration. - Fully Customizable Sizes:
Supports non-standard width and length dimensions to fit various roller conveyor layouts. - Wide Compatibility:
Compatible with polyurethane roller conveyors, metal roller chains, and other conveying systems, allowing for quick and easy installation.
Applications:
- High-speed automotive assembly lines
- SMT production lines in electronics manufacturing
- High-speed sorting systems in food and pharmaceutical industries
- MaterialsPolyamide (modified reinforced)+UPE (8 million)

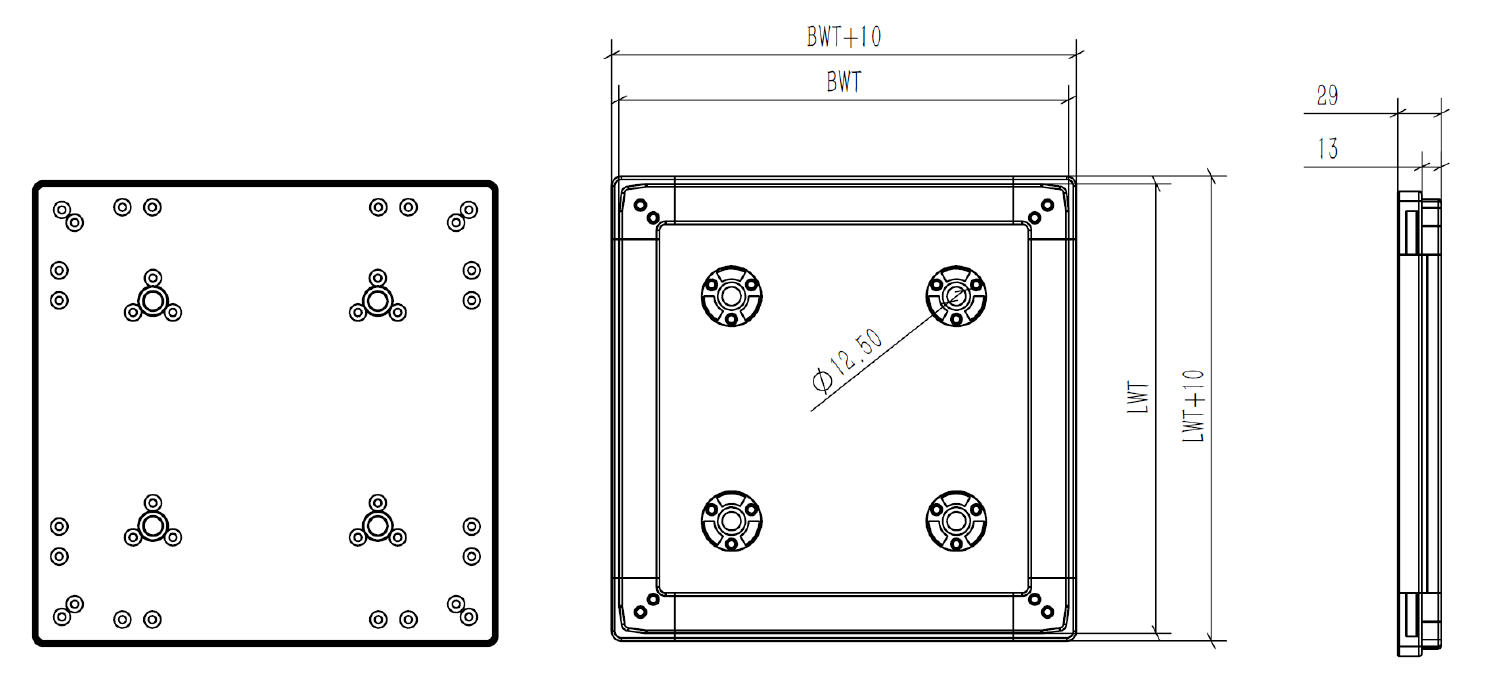

- Width Range/BWT(mm) unrestricted;
- Length Range/LWT(mm) unrestricted;
- BWT x LWT ConfigurationArbitrary combination of standard lengths and widths
- ComponentsAssembled
- Order CodesBWT-LWT-T-M eg:
BWT320-L400-T5mm-M.AL
(Width 320- Length 400-5mm thick aluminum carrier plateļ¼
1) Carrier Plate Thickness:5-8mm
2) Carrier Plate Options:aluminum alloy, bakelite.
3) Frame Weight: 8 g/cm (Example: For a 400*400 pallet frame, the weight is 160 * 8 = 1.28 kg).
