Workpiece Pallet For Belt Conveyor Lines
This workpiece pallet for Belt Conveyor Lines made of Polyamide (modified reinforced), offering excellent mechanical strength, wear resistance, and light weight. It is suitable for various automated production lines, assembly stations, and material handling scenarios.
Key Features:
- Flexible Size Combinations:
Supports width (BWT) and length (LWT) combinations in 20 mm increments, ranging from 160 mm to 1200 mm, to meet diverse workpiece carrying needs. - Sturdy and Reliable Structure:

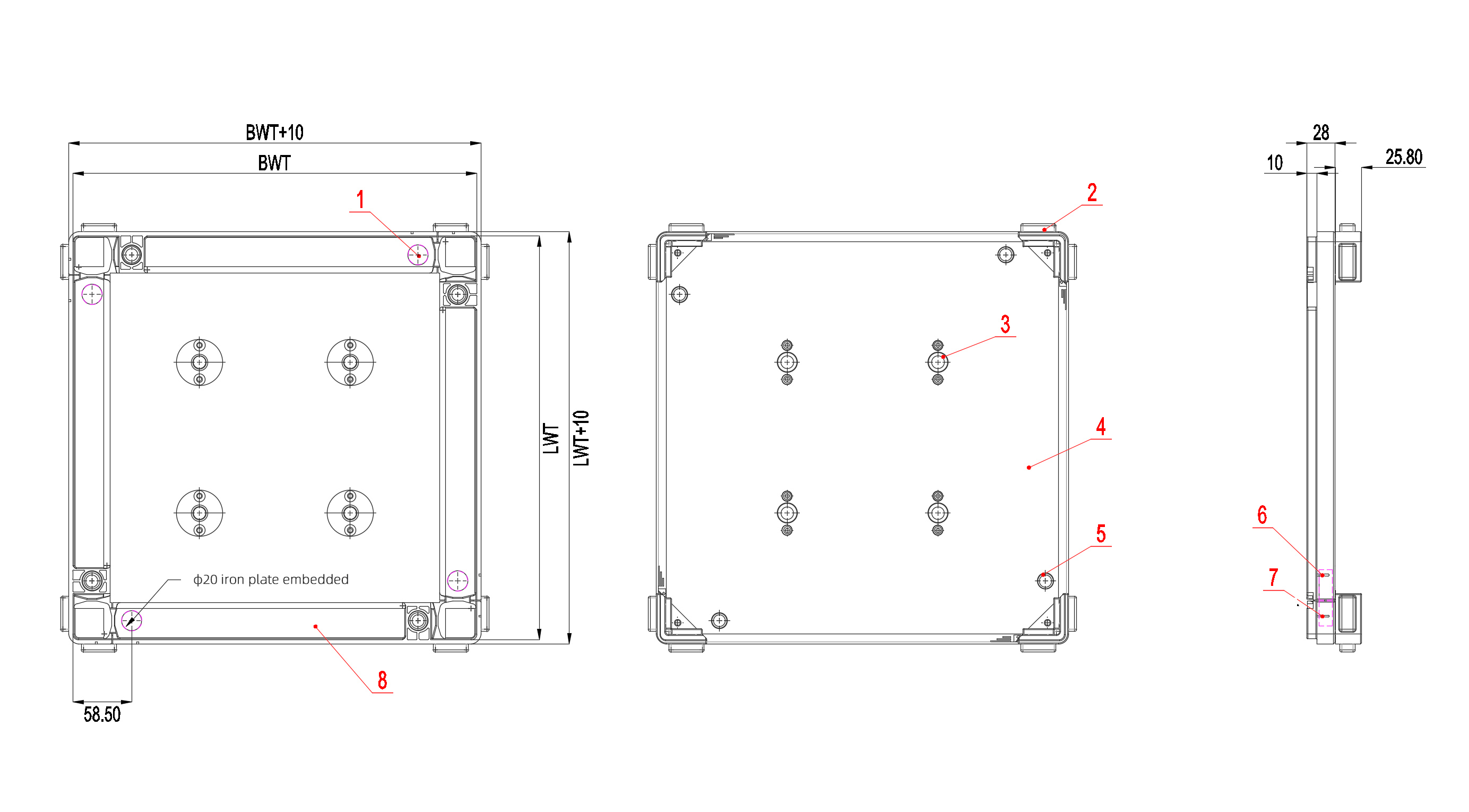

Standard components include load plates (5 mm or 8 mm thick), embedded steel plates (for proximity sensor detection), buffer units, and plastic-steel dowels, ensuring high precision and durability under frequent use. - Multiple Material Options:
Load plates can be customized in aluminum (AL), steel (ST), phenolic (PF), or carbon fiber (CB) to suit different working conditions and environments. - Fool-Proof Design:
Equipped with 25×10 anti-misalignment steel plates and 20×10 sensor plates to improve alignment accuracy and operational safety.
Applications:
- Automated assembly lines, material transfer stations
- CNC machining centers, inspection stations
- Logistics sorting systems, flexible production lines
- MaterialsPolyamide (modified reinforced)
- Width Range/BWT(mm)160;240;320;400;480;640;800;1040;1200;
- Length Range/LWT(mm)160;240;320;400;480;640;800;1040;1200;
- BWT x LWT ConfigurationArbitrary combination of standard lengths and widths
Recommended configuration：Aspect ratio ≤ 2 - Custom Sizing ConfigurationBWT=Multiples of 20；LWT=Multiples of 20
- ComponentsAssembled
- Order CodesBWT-LWT-T-M eg:
BWT320-L400-T5mm-M.AL
(Width 320- Length 400-5mm thick aluminum carrier plate）
1) T5 mm:Carrier Plate Thickness 5mm
2) T8 mm:Carrier Plate Thickness 8mm
3) M(material)：Aluminum(AL)/ Steel (ST)/ Bakelite (PF) / Carbon Fiber (CB)
